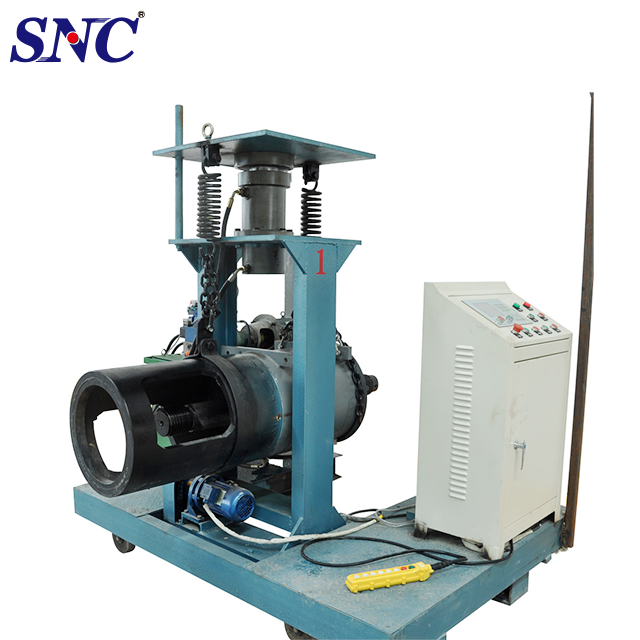

The development of YC type pipe pile tensioning machine has successfully solved the problems existing in the tensioning process for a long time and ensured the accuracy of the tensioning process. Its simple operation, easy installation, high reliability; When tensioning, the operator directly selects the tensioning parameters, automatic tensioning, not easy to make mistakes; In the process of tensioning, real-time display, real-time control and storage of tensioning data can be realized, and the tensioning results can be recorded and printed at the end of tensioning, so as to ensure the authenticity of construction records and improve the credibility of construction acceptance report, which is of great significance for improving the quality of pipe piles. The hydraulic station, electrical control, frame and tension jack of YC type pipe pile tensioning machine are installed together (according to needs can also be arranged separately, especially for large tonnage tensioning machine), compact structure, simple installation and convenient operation. The frame is equipped with a track, and the jack can move forward and backward longitudinally. If the multi-station tension, can be installed below the wheel, lateral movement along the track; The lifting of the jack is driven by hydraulic pressure, with a stroke of 220mm. In the production process of pipe pile, tensile error is an important factor affecting its quality. YC type pipe pile tensioner uses pressure sensor to measure pressure of hydraulic system to measure tension indirectly. YC type pipe pile tensioner will enter the control interface after power-on, in which the steel die number and operator number can be input. Press the "Basic Parameters" button to enter the basic parameters interface, and press the "Tension Parameters" button to enter the tension parameters interface. In the interface of basic parameters, you can input parameters such as pretensile pressure, overtensile coefficient, pressure loss, jack number, tensile area and jack coefficient.
No. | Item | YC100 | YC200 | YC300 | YC400 | YC600 |
1 | Rated oil pressure | 50 Mpa | 50 Mpa | 55 Mpa | 45 Mpa | 50 Mpa |
2 | Tension stroke mm | 250 | 200 | 200 | 200 | 300 |
3 | Piston area of tension cylinder cm2 | 212.64 | 418.6 | 529.88 | 898.04 | 1209.7 |
4 | Theoretical tension KN | 1063 | 2093 | 3000 | 4041 | 6048 |
5 | Piston area of return cylinder cm2 | 106.8 | 171.3 | 216 | 368 | 572.27 |
6 | Diameter of center hole mm | 74 | 104 | 112 | 144 | 175 |
The development of YC type pipe pile tensioning machine has successfully solved the problems existing in the tensioning process for a long time and ensured the accuracy of the tensioning process. Its simple operation, easy installation, high reliability; When tensioning, the operator directly selects the tensioning parameters, automatic tensioning, not easy to make mistakes; In the process of tensioning, real-time display, real-time control and storage of tensioning data can be realized, and the tensioning results can be recorded and printed at the end of tensioning, so as to ensure the authenticity of construction records and improve the credibility of construction acceptance report, which is of great significance for improving the quality of pipe piles. The hydraulic station, electrical control, frame and tension jack of YC type pipe pile tensioning machine are installed together (according to needs can also be arranged separately, especially for large tonnage tensioning machine), compact structure, simple installation and convenient operation. The frame is equipped with a track, and the jack can move forward and backward longitudinally. If the multi-station tension, can be installed below the wheel, lateral movement along the track; The lifting of the jack is driven by hydraulic pressure, with a stroke of 220mm. In the production process of pipe pile, tensile error is an important factor affecting its quality. YC type pipe pile tensioner uses pressure sensor to measure pressure of hydraulic system to measure tension indirectly. YC type pipe pile tensioner will enter the control interface after power-on, in which the steel die number and operator number can be input. Press the "Basic Parameters" button to enter the basic parameters interface, and press the "Tension Parameters" button to enter the tension parameters interface. In the interface of basic parameters, you can input parameters such as pretensile pressure, overtensile coefficient, pressure loss, jack number, tensile area and jack coefficient.
No. | Item | YC100 | YC200 | YC300 | YC400 | YC600 |
1 | Rated oil pressure | 50 Mpa | 50 Mpa | 55 Mpa | 45 Mpa | 50 Mpa |
2 | Tension stroke mm | 250 | 200 | 200 | 200 | 300 |
3 | Piston area of tension cylinder cm2 | 212.64 | 418.6 | 529.88 | 898.04 | 1209.7 |
4 | Theoretical tension KN | 1063 | 2093 | 3000 | 4041 | 6048 |
5 | Piston area of return cylinder cm2 | 106.8 | 171.3 | 216 | 368 | 572.27 |
6 | Diameter of center hole mm | 74 | 104 | 112 | 144 | 175 |
