Steel cage welding machine VS Traditional steel cage forming

Steel cage welding machine is a kind of equipment which is controlled by PLC or SCM to process and produce steel cage. The appearance of CNC steel cage welder has ended the history of steel cage binding by hand, and improved the efficiency for the manufacture of Bridges and high-speed railways.

Working principle: According to the construction requirements, the main bar of the steel cage is manually passed through the corresponding circular hole of the fixed rotating plate to move and rotate.

Types of steel cage: the diameter of the steel cage is 250 ~ 1200mm, the diameter of the longitudinal bar and the ring bar is 5 ~ 16mm, and the resistance spot welding is adopted to realize automatic continuous welding. Not only can be made into a round can also be made into a square steel cage, widely used in the production of concrete cast-in-place pile, precast pile, concrete pipe and electric pole.

Traditional steel cage forming

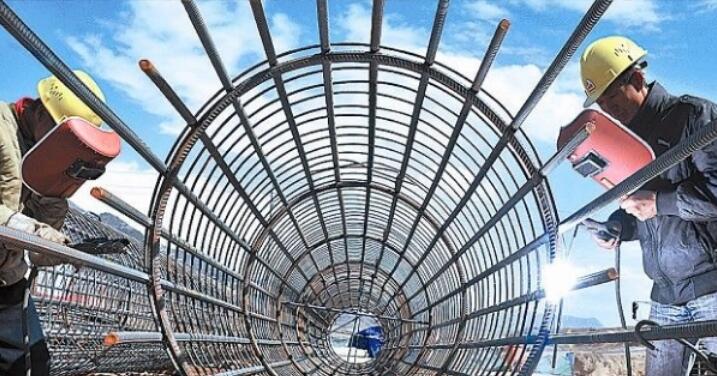

Since the tradition, in the construction projects with pile foundation construction, the steel cage used in pile foundation has been by artificial winding and binding or bending and welding. By manual steel cage, spacing is not uniform, loose, easy to deformation, affect the quality of the project; And requires a large number of manpower, processing costs are high. At present, in some construction sites, or to manual processing, but the automatic forming of steel cage has become an inevitable trend of development.
