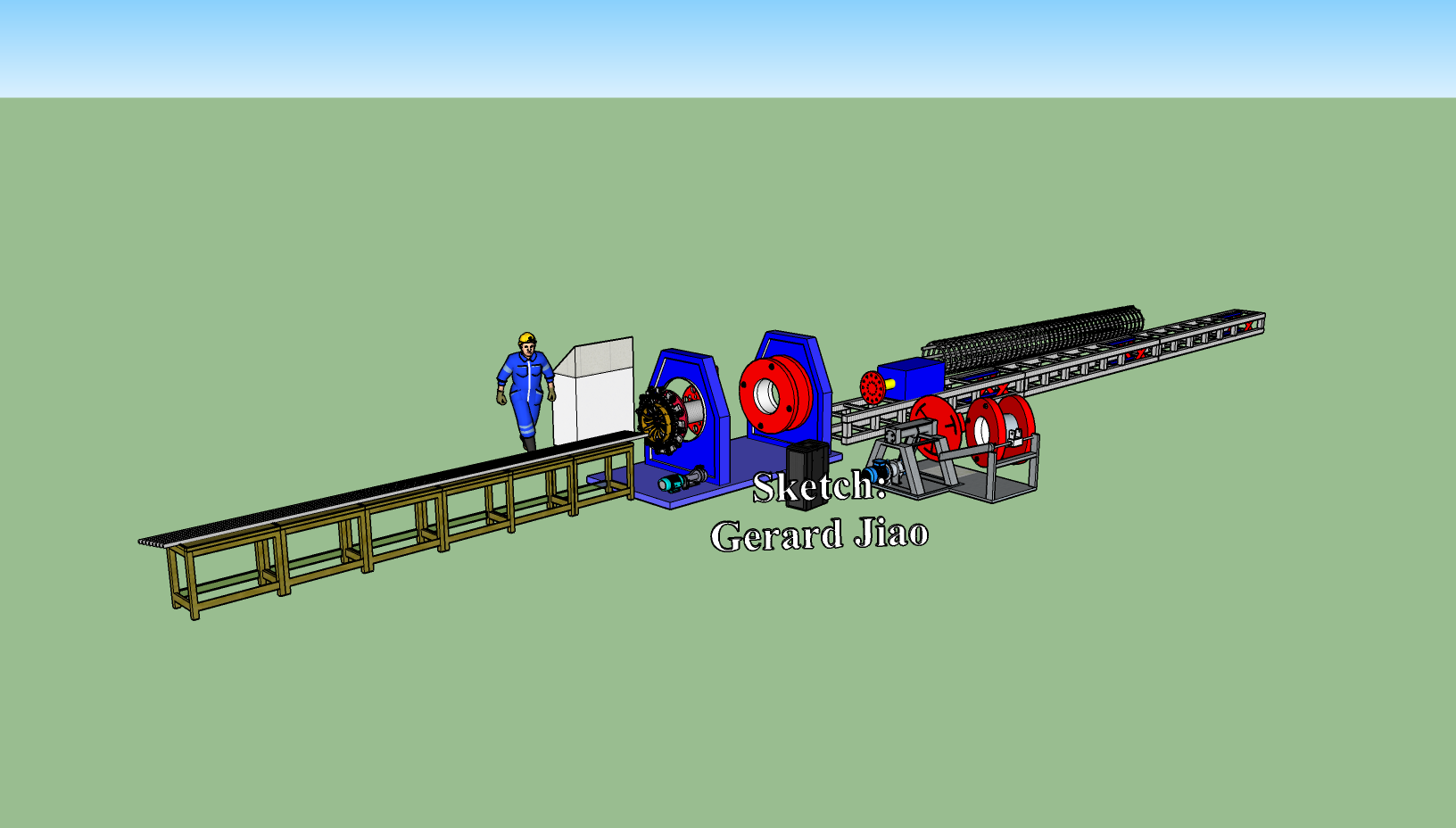

Conical pole cage welding machine

Conical pole welder is suitable for concrete pole reinforcement cage, prestressed concrete pole reinforcement cage welding forming, a good solution to the 1:75 degree taper pole diameter, building bar steel welding strength is low, bracket automatic servo and other technical problems, with high efficiency, solid welding, fast forming, high precision, small diameter error and so on.

In the welding process, the main reinforcement cage body does not turn, the spin of the ring reinforcement, the pitch can be set arbitrarily according to the requirements, and it has the function of automatic cage release and cage unloading. Automatic adjustment welding mechanism is adopted to make the welding of cage body more firm.

Technical Parameters: Technical parameters:

1, tip diameter :190mm, 230mm, 270mm, 310mm

2, welding steel skeleton length :7500~ 15000mm

3. Pole taper: 1:75

4, longitudinal bar diameter, grade: (12mm, 14mm, 16mm)

5, the number of longitudinal tendons: 10~20

6, ring bar diameter, material: (4mm ~6mm; (According to longitudinal bar diameter, number of roots, length comprehensive determination)

7, ring bar material :Q195(recommended) or Q235;

8, welding speed: 15m steel cage in 4 minutes or so (excluding the time to wear reinforcement); Traction trolley can be returned quickly;

9. Welding mode: resistance welding

10, welding operation mode: the main bar does not turn, ring bar spin

11, pitch :0-150mm (can be arbitrarily set according to the requirements)

12, the way to wear tendons: artificial.

13, release cage mode: mechanical self-unloading

15, diameter error rate :±2mm

16, the main welding transformer working voltage :380V

17, transformer power: 300 KVA

18. Driving power: 14KW

19. Auxiliary power :≥6kg compressed air (2m2 air compressor provided by the user)

20, control mode: PLC program control, man-machine interface
