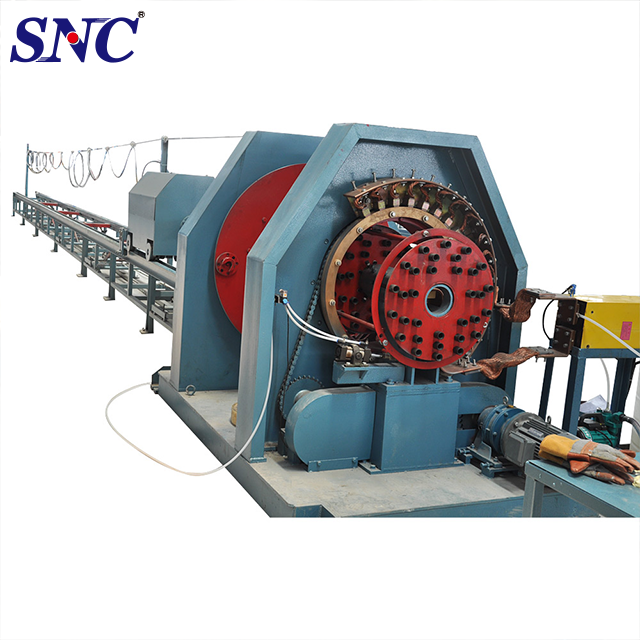

Pile welding machine is a special mechanical equipment in cement products industry. At present, the rolling welding machine used in the production practice in our country is divided into the following two kinds:
First, the single chip microcomputer control, this kind of rolling welding machine can realize automatic production, improve the production efficiency, and can meet the demands of many varieties and multiple specifications of products. However, in ensuring the precision of pitch still rely on manual or mechanical transmission adjustment, the motor uses electromagnetic speed regulation, there is a large pitch error, welding speed and pitch can not be adjusted at will, solder joints can not track and other problems.
The second is the use of PLC and AC motor frequency control technology, the welder can realize automatic processing, further improve the level of automatic control of the welder. The system automatically completes the machining calculation and welding control according to the preset pitch length. The operation of the tray and the trolley is automatically identified and calculated by the PLC control software. When the speed of the material plate changes artificially, the speed of the trolley will follow the change to ensure that the length of the pitch of the processing is unchanged. In order to prevent misoperation, the change of the process parameters is invalid during the operation, and the modification is effective only in the shutdown state.
Man-machine interaction surface, digital intellectual control;
Integrated main engine, small trolley, material plate electronic control, counting function;
48 types of welding cage parameters presetting, choosing directly, free of adjustment;
The welding process can be paused freely and you can adjust the position of main engine,material plate and small trolley meanwhile. It needn’t to calculate ahead and afterwards quota after re-starting.
Plate of main engine adopts belt transmission, running quietly and smoothly.
Parameters
Welding concrete cage side length 250, 300,350,400,450,500,600mm and rectangular pile
Welding concrete cage length 4m-15m (It can be custom made.)
Number of longitudinal steel bar 4\8\12 etc. (It can be custom made.)
Diameter of vertical bar Ø7.1mm, Ø9.0mm, Ø10.7mm, Ø12.6mm and deformed steel bar Ø12-24mm.
Diameter of circular plate Ø4-Ø6mm
Driving power 8.4KW~15.2KW
Welding power 200KVA ~300KVA
Control method Micro-computer
